Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: ISO Certificate, RoHS Compliant
Model Number: SMA Fiber Optic Connector 3.0mm

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Packaging Details: 100PCS/Bag
Supply Ability: 900000PCS/Month
Get Best Price Contact Now

Detail Information

Connector Outer Diameter: 3.0mm, 2.0mm, 0.9mm Connector: FC, SC, ST, LC, SMA, E2000, MPO, MTRJ
Polishing Type: UPC, APC Cores: Simplex, Duplex
Fiber: SM, MM-OM1, MM-OM2, MM-OM3, MM-OM4 Material: Plastic Housing, Metal Housing
High Light:

fiber optic cable connectors

,

duplex fiber optic connector

Product Description

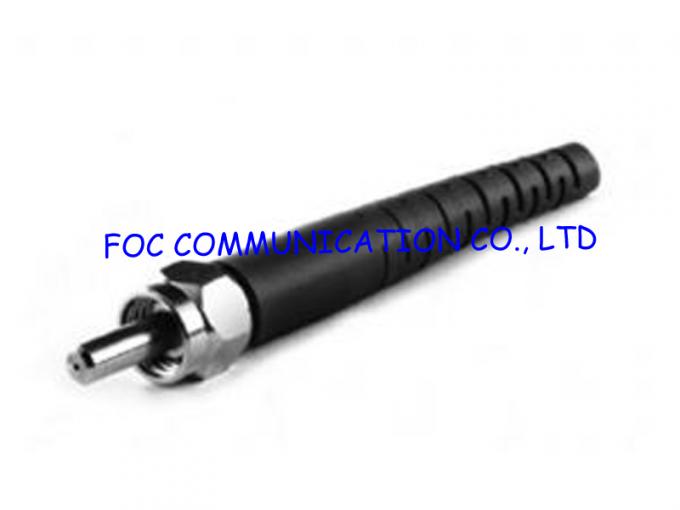

SMA Fiber Optic Connectors Singlemode and Multimode For Fiber Optical Networks

SMA 905 and 906 connectors make use of threaded connections and are ideal for military applications because of their low cost multimode coupling. These multimode connectors are available with stainless alloy or stainless steel ferrules. The stainless alloy ferrule may be drilled from 125um to 1550um to accept various fiber sizes. SMA 906 ferrule has a step, as shown in the following picture, which requires a half sleeve to be installed when mating a SMA 906 connector with SMA 905 mating sleeves.

We supply SMA fiber optic connectors and related SMA products including adapters and various cable assemblies. The SMA fiber connectors are compliant to industrial standards and they feature the low insertion loss and high return loss as well as excellent compatibility with the equipment from other suppliers.



Features

Industry compatible with 905(FSMA-1) and 906(FSMMI) style connectors

Terminates fiber sizes from 125 through 100 microns in diameter

Design parameters conform to NATO

Low insertion loss and high return loss

Materials meet ROHS requirements

Riser, Plenum and LSZH cables available



Applications

FTTH, FTTX

CATV, Multimedia

Telecommunication Networks

Data processing networks

Premise installations

Optical switch interframe connection

Fiber Optic Test Equipments



Specifications

Item Condition Parameter(dB)
MM SM
Insertion Loss MM:0.85/1.3um,SM:1.31/1.55um ≤0.3 ≤0.3
Return Loss MM:0.85/1.3um, SM:1.31/1.55um ≥35 ≥50(APC≥60)
Interchangeability Random connection <0.2 <0.2
Vibratility 5-50Hz, 1.5mm vibration <0.1 <0.1
Tensile Strength 70N (0.9mm apart) <0.1 <0.1
High Temperature +85℃,100Hours <0.2 <0.2
Low Temperature -40℃,100Hours <0.2 <0.2
Temperature change circle -40℃~+85℃,100Hours <0.2 <0.2
Humidity +25℃~+85℃,93%R.H.100Hours <0.2 <0.2
