• FTTH Fiber Optic Pigtail  SC/ APC with FTTH Indoor Cable High Stability
FTTH Fiber Optic Pigtail  SC/ APC with FTTH Indoor Cable High Stability

FTTH Fiber Optic Pigtail SC/ APC with FTTH Indoor Cable High Stability

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: ISO, RoHS Compliant
Model Number: SC SM FTTH Fiber Optic Pigtail

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: 1PCS/Blister Box
Get Best Price Contact Now

Detail Information

Cable: PVC, LSZH, OFNP, OFNR, Hytrel Cores: Simplex, Duplex, 2core, 4core, 6core, 8core, 12core, 24core
Fiber: OS1, OS2, OM1, OM2, OM3, OM4 Outer Diameter: 0.9mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm
Connector: FC, FC/APC, SC, SC/APC, LC, LC/APC, ST, E2000, MU, MTRJ, MPO Length: 1M, 2M, 3M, 5M Or As Per Customer Request
High Light:

fiber optic pigtail connector

,

optical fiber pigtail

Product Description

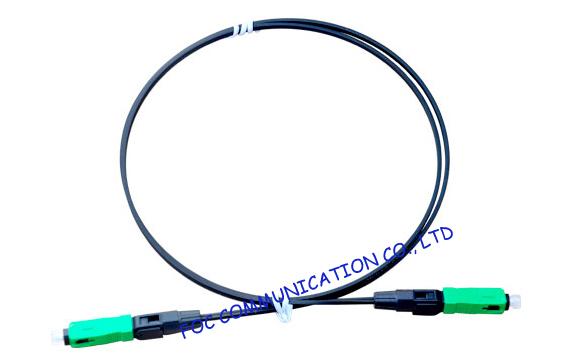

FTTH Fiber Optic Pigtail  SC/ APC with FTTH Indoor Cable High Stability

FTTH fiber optic pigtail is a piece of FTTH cable assembled with connectors only in one side. And the other side has no connectors. Then the other side is usually spliced with other fiber optic cable. It is preinstalled in the fiber optic terminal box, ODF, fiber optic joint closure to connect the equipment.  There are single mode and multimode pigtails, the wavelength of single mode pigtail is 1310/1550nm and the color is yellow in common. If multimode fiber optic pigtail,  the color is orange. We also provide non-jacketed fiber optic pigtail and jacketed pigtails.



Breakout optical fiber pigtail, distribution pigtail and ribbon fan out pigtails are also available.

Customer label and OEM design can be produced as per request.



Features
Simplex, and multi-fiber assemblies are available

PC or APC finish
Compliant with Telcordia GR-326-CORE specification
Applicable connector: FC, SC, ST, LC…
Cable material: PVC, LSZH,

Fiber Type: SM, MM OM1, OM2 or OM3 optional
Cable size: Φ 0.9mm, Φ 2.0mm, Φ 3.0mm



Applications

High bit rate data transmission

Fiber-optic communication networks

Testing instrument

Active device terminations

CATV, LAN, MAN, WAN, test and measurement

FTTX



Ordering Information

Fiber mode Singlemode (9/125um G652D/G657/G655) or Multimode (62.5/125um OM1,OM2,OM3,OM4)
Fiber count Simplex,Duplex or 4, 6, 8, 12, 24, 48 cores are available
Cable diameter 0.9mm/1.2mm/1.6mm/1.8mm/2.0mm/3.0mm etc.
Cable jacket PVC,LSZH,OFNR,OFNP
Cable color SM-Yellow, OM1/OM2-Orange, OM3-Aqua green, OM4-Purple or OEM color
Cable length(M) Customized
Connector type LC, SC, FC, ST, MU, MTRJ, MPO, SMA, D4 and others
Ferrule Ceramic/Zirconia ferrule, made in China or Japan
Polish/Endface PC, UPC, APC
Housing/boot color Standard(Blue/Beige/Green) or OEM color
Packing Multi-piece or one piece type available,Normally polybag+carton box, can be customized
