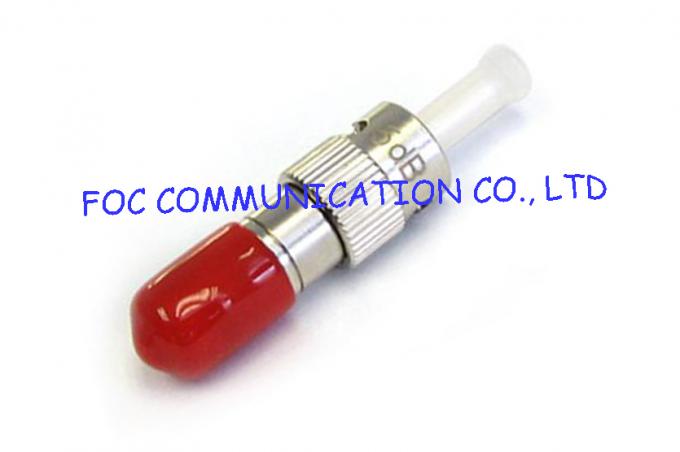

• ST 10dB Singlemode Fiber Optic Attenuator 1310 / 1550nm Wavelength High Stability
ST 10dB Singlemode Fiber Optic Attenuator 1310 / 1550nm Wavelength High Stability

ST 10dB Singlemode Fiber Optic Attenuator 1310 / 1550nm Wavelength High Stability

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, ISO Certificate
Model Number: ST/UPC 10dB Fiber Optic Attenuator

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: 1PCS/PE Bag
Get Best Price Contact Now

Detail Information

Attenuation: 0dB To 25dB Connector: FC, SC, ST, LC, MU
Type: Male To Female, Female To Female Mode: Singlemode, Multimode
High Light:

variable optical attenuator

,

single mode fiber attenuator

Product Description

ST 10dB Singlemode Fiber Optic Attenuator 1310 / 1550nm Wavelength High Stability

Our fiber optic attenuators are with ceramic ferrules and there are various types to fit different kinds of fiber optic connectors. Fixed value fiber optic attenuators can reduce the optical light power at a fixed level, for example, a 10dB SC fiber optic attenuator will reduce the optical power 10dB and utilize a SC male to female attenuator.



Our fiber attenuator series include: SC ,FC,LC,ST ,MU,SC/APC ,FC/APC, single mode fiber optic attenuator and multimode fiber optic attenuator available. Our fiber optic attenuators are manufactured according to international standard and are compatible with the fiber optic products currently available in the international market.



ST Fiber Optic Attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal. And it is often used to limit the optical power received by the photo detector to within the limits of the optical receiver.

Features

SC, FC, ST, MU and LC connector styles (ultra and angle polish)
Long-term reliability
Low ripple, wavelength independent attenuation
Certified to >125mw continuous power handling capability with no degradation in
performance
Polarization insensitive



Application

Passive optical networks

Data networks

Telecommunication networks

Optical fiber test facility

LAN

CATV systems



Specifications

PARAMETER UNIT Fixed Attenuators Variable Attenuators
Operation wavelength nm 1310,1550 1200-1600
Attenuation Value dB ±0.5dB (<10dB)
±1.0dB (>10dB)
0-30
Max. Optical Input Power MW 500 500
Max. PDI dB ≤0.1 ≤0.1
Return Loss dB PC ≥45
UPC ≥55
APC ≥60
Operating Temperature °C -30~+75 -30~+75
Storage Temperature °C -40~+85 -40~+85



Ordering Information

Optical connector Attenuator Structure Type Polish Wavelength Attenuation Level
SC,FC,ST,LC,MU
E2000,DIN
Female to male Plug-in type APC 1310nm 1dB to 30dB
  Adapter (Bulkhead) type UPC 1550nm
  In-line type   1310/1550nm
      850nm
      1300nm
      850/1300nm
