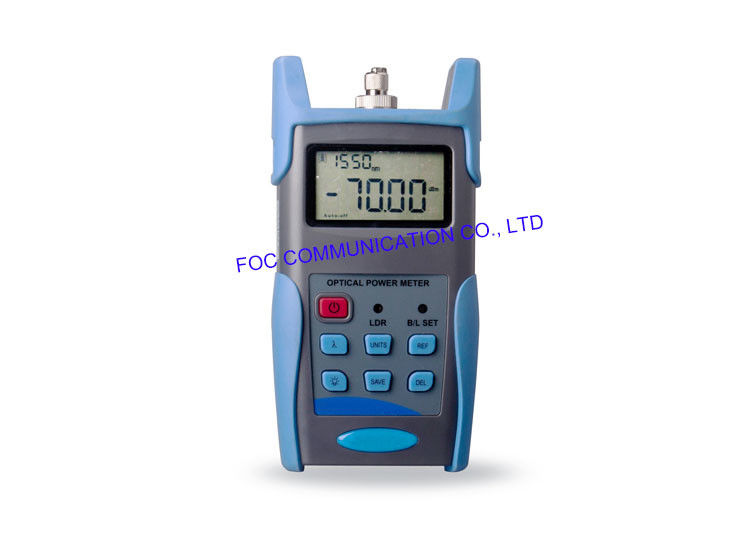

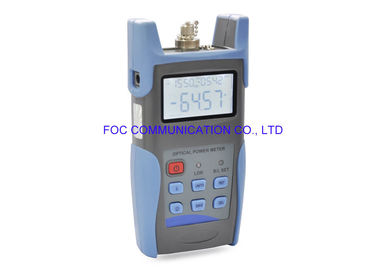

Fiber Network Installation FO3216 1310nm Handheld Optical Power Meter

Fiber Network Installation FO3216 1310nm Handheld Optical Power Meter

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, ISO Certificate
Model Number: Fiber Optic Power Meter FO3216

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Packaging Details: 1PCS/BOX
Payment Terms: Western Union, T/T
Supply Ability: 5000PCS/MONTH
Get Best Price Contact Now

Detail Information

Type: Handheld Power Meter Wavelength: 1310nm, 1490nm, 1550nm, 1625nm
Date Storage Capacity Frequencies: 1000 Optical Connector Type: FC, SC, ST Interchangeable
High Light:

1310nm fiber optic power meter

,

1.5v optical power meter

Product Description

Handheld Optical Power Meter FO3216 For Fiber Network Installation and Maintenance



General information

FO3216 Handheld Optical Power Meter is newly designed fiber optic tester, it aims at fiber network installation, fiber network engineering acceptance and fiber network maintenance. Combined usage with FO3116 handheld optical light source, it offers a quick and accurate testing solution on both SM and MM fibers. Compared with usual power meters, the 3216 has more great functions/features of automatic wavelength identification and switching and intelligent backlight control. Also the 3216 features good appearance, good touch feeling and considerate humanity design.



Key Features

  • Wave ID—Automatic wavelength identification and switching (when used with 3116 handheld light source)
  • Frequency ID/Tone detection---Automatic frequency identification
  • Intelligent backlight control (light intensity can be adjusted properly according to ambient light, which greatly reduced power consumption)
  • Data storage function, up to 1000 test records
  • USB communication port for saved testing records download
  • Reference power level can be set up and stored
  • User self calibration function
  • Auto-off function can be activated or deactivated.
  • AA alkaline and AC adapter for power supply
  • Low battery indication



Specifications

Model FO3216A FO3216C
Calibrated(nm)wavelength 850, 1300,1310,1490,1550,1625
Detector type InGaAs
Measurement Range(dBm) -70~+6 -50~+26
Uncertainty (dB) ±0.15(3.5%)
linearity (dB) ±0.02
Display resolution(dB) 0.01
Frequency ID(Hz) 270,330,1K,2K
Wave ID(nm) 1310,1490,1550,1625
Date storage capacity 1000
Communication Port USB
Optical Connector type FC,SC,ST interchangeable
Alkaline battery 3*AA,1.5V
Power Supply Adaptor(V) 8.4
Battery Operating time (h) 200
Operation Temperature(℃) -10~+60
Storage Temperature(℃) -25~+70
Outline size(mm)/weight 180*90*45(250g)



Accessories

MODEL INCLUDES
All FO3216 Models FO3216 Optical Power Meter, 3pcs 1.5V batteries, AC Adaptor, User Manual, Cotton swabs and Soft carrying case.
