Durable Fiber Optic Patch Cord SC For Telecommunication Networks
Product Details:
Place of Origin: | China |
Brand Name: | FOCABLE |
Certification: | RoHS Compliant, SGS Certificate, ISO Certificate |
Model Number: | MM Duplex Fiber Patch Cable FC LC SC ST |
Payment & Shipping Terms:
Minimum Order Quantity: | 10PCS |
---|---|
Packaging Details: | 1PCS/PE Bag |
Delivery Time: | 3-5days |
Detail Information |
|||
Fiber Type: | SM, OM1, OM2, OM3, OM4 | Cable Material: | PVC, LSZH, OFNP, OFNR, Hytrel |
---|---|---|---|
Cable Diameter: | 0.9mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 3.0mm | Connector: | SC/APC, SC/UPC, FC/APC, FC/UPC, LC/APC, LC/UPC, ST, E2000, MU, MPO, MTRJ |
Cores: | Simplex, Duplex, 4cores, 6cores, 8cores, 12cores, 24cores, 48cores | Length: | 1M, 2M, 3M, 5M Or As Per Customer Request |
High Light: | multimode fiber optic cable,fiber optic jumper |
Product Description

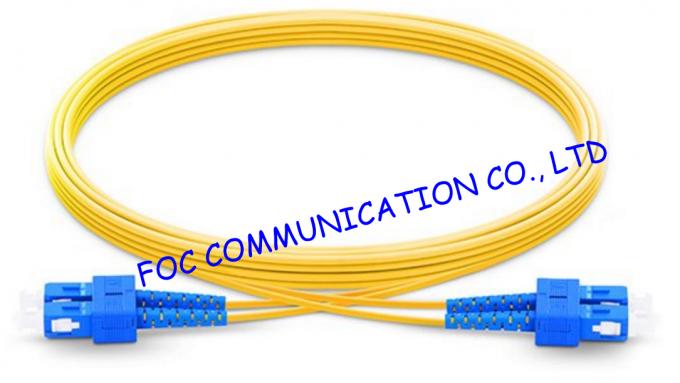

Durable Fiber Optic Patch Cord SC For Telecommunication Networks
Optical fiber patch cords are used to provide optical connection for fiber optic networks. The patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices. The patch cord can be used in an interconnect or cross-connect path connecting the incoming fibers to the network equipment and providing patching within the fiber paths. Patch Cords include simplex, duplex and Multi-fibers optic assemblies.
Features
- Flame-retardant jacket
Durable flame-retardant jacket - Superior Performance Testing
Every termination is tested to ensure the highest in network performance - State-Of-The-Art Manufacturing Processes
Corning proprietary manufacturing processes and advanced technology result in unsurpassed product consistency - Corning advantage
Integrated developer and manufacturer of cable, connectors and fiber to ensure overall cable assembly performance
Applications
- CATV, Metro, LANs
- Active device termination
- Telecommunication networks
- Industrial, medical & military
Specifications
Item |
Specifications |
IL(insertion loss) |
<0.3dB |
RL(return loss) |
PC≥50dB, APC≥60dB |
Interchangeability |
≤0.2dB |
Repeatability |
≤0.1dB(1000times) |
Vibration |
≤0.1dB(550Hz, 1.5mm) |
Operating Temperature |
-40~80℃ |
Ordering information
1.Connector one, LC,FC,SC,ST,MTRJ,DIN,D4,E2000,MPO, Connector two LC,FC,SC,ST,MTRJ,DIN,D4,E2000,MPO.
2.Ferrule interface type: UPC,APC
3.Fiber type; singlemode(G652,G655),MULTIMODE(50/125, 62.5/125),OM3
4.Fiber cable diameter(mm):Φ0.9, Φ2.0 ,Φ3.0
5.Cable length: Customized length
Fiber Optic Patchkabel, Optical Fiber Patch Cord, Fiber Optic Assemblies, Fiber Jumpers
