• Duplex 2.0mm fiber optic patch cord lc lc For FTTH , Low Insertion Loss
Duplex 2.0mm fiber optic patch cord lc lc For FTTH , Low Insertion Loss

Duplex 2.0mm fiber optic patch cord lc lc For FTTH , Low Insertion Loss

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, SGS Certificate, ISO Certificate
Model Number: SC/UPC-LC/UPC SM Duplex Fiber Patch Cord

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: 1PCS/PE Bag
Delivery Time: 3-5days
Get Best Price Contact Now

Detail Information

Fiber Type: SM, OM1, OM2, OM3, OM4 Cable Material: PVC, LSZH, OFNP, OFNR, Hytrel
Cable Diameter: 0.9mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 3.0mm Connector: SC/APC, SC/UPC, FC/APC, FC/UPC, LC/APC, LC/UPC, ST, E2000, MU, MPO, MTRJ
Cores: Simplex, Duplex, 4cores, 6cores, 8cores, 12cores, 24cores, 48cores Length: 1M, 2M, 3M, 5M Or As Per Customer Request
High Light:

multimode fiber optic cable

,

fiber optic jumper

Product Description

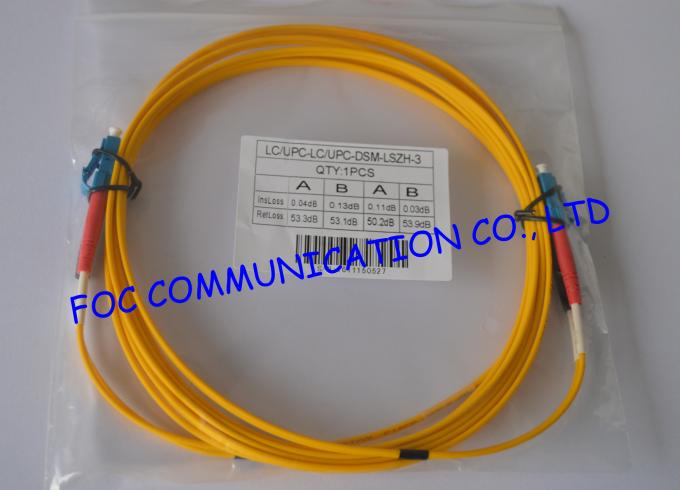

Duplex 2.0mm fiber optic patch cord lc lc For FTTH , Low Insertion Loss

FOC COMMUNICATION CO., LTD produces a large range of fiber optic patch cord and pigtails, such as SC, LC, FC, ST, MU, E2000, MPO, in both singlemode and multimode fiber. Available in simplex, duplex, 4cores, 12core, 24cores and other multicores.



LC optical fiber patch cords are with 1.25mm diameter ferrules for compact multiple optical connectors and self-retentive mechanism for backplane applications. It’s application is for high-speed data communications, voice networks, telecommunications and high-density DWDM applications. All Fiber Patch Cords can be ordered in various custom lengths in addition to the standard lengths displayed.


When high density is required, recommends the duplex LC based products. Optical fiber choices include singlemode and multimode in both 62.5/125 and the new 50/125 core sizes.



Our LC optical fiber cord are compliant to IEC and EIA/TIA standards, they are compatible to use with equipment from other companies. We supply the LC fiber optic connectors, jumper cables, adapters, LC attenuators and related LC fiber optic components.



Features

1.IEC Compliant
2.Telcordia compliant

3.Low insertion loss

4.High return loss

5.Excellent repeatability

6.Compact and anti-pull design
7.Precision fiber optic ferrule
8.High precision exact alignment



Applications

1.Telecommunication Networks

2.Fiber to the home

3.Local area networks, wide area networks

4.Optical Switch interface connections
5.Gigabit Ethernet
6.CATV and WAN
7.Testing Instrument, active device connection

8.Premise Installations



SPECIFICATIONS

Connector

FC, SC, ST, LC

UPC

APC

Insertion Loss

≤0.3dB

Return Loss

≥50dB

≥60dB

Cable Outer Diameter(mm)

¢0.9, ¢2.0, ¢3.0

Durability

≤0.3dB(1000 matings)

Interchangeability

≤0.2dB

Operating Temperature

-40℃~+80℃



Or

Duplex 2.0mm fiber optic patch cord lc lc For FTTH , Low Insertion Loss 0
